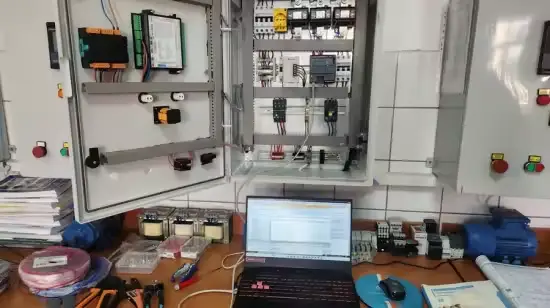

Automation Panel Applications with Siemens S7-1200 PLC

Siemens S7-1200 Automation Applications Hardware and Software will be provided.

What you’ll learn
You will be able to make the connections for the Siemens S7-1200 PLC.
You will learn about the circuit components used in automation panels.
You will learn how to connect the circuit components used in the automation panel.
You will learn about the circuit components used in control panels.
You will learn how to connect the circuit components used in the control panel.
You will be able to connect the motor.
At the end of the exercise, the panel will be powered on, and you will learn how the system works.

Requirements
Knowing about control panels will make it easier for them to understand. A course on control panel applications could be their first priority.

Description
Welcome to the world of automation with Siemens S7-1200!

But here, it’s not just about “writing code on a screen”… Because true automation begins where the logic you’ve written comes to life through connections on the PLC.

In this training, while learning the S7-1200 step by step, we also delve into the world of automation panels: panel components, layout logic, and basic connection arrangements… The question of “PNP or NPN?” will cease to be a confusing topic and become a clear logic that falls into place with the diagram and application.

The most enjoyable part is this: we write programs in TIA Portal (checking them with PLC simulation if necessary), upload them to the PLC, and then run them through the connections we’ve established, and examine the results together. So you see not only “how to write the program,” but also “how it works.”

Next, we move on to the most common part you’ll encounter in the field: motor control.
We set up scenarios such as direct starting, multi-point control, electrical interlocking, and direction reversal for 3-phase asynchronous motors, both on the hardware and software sides. Because we proceed step-by-step, the process becomes both understandable and a confidence-building workflow.

In short, this course is less about making you say “I’ve learned it” and more about making you say “I can build this myself.”

With the included Automation Workshop Handbook (PDF), you can take notes while watching, follow the diagrams, and repeat the applications step by step.

Note: This course will be continuously updated! New lessons and videos will be added to the curriculum soon; everyone enrolled in the course will continue to have access to the added content without paying any extra fees.

Are you ready? Let’s make a solid, enjoyable, and practical start to automation with the S7-1200.

What will you learn?

• The world of automation control panels: control panel materials, their functions, and layout/assembly logic.

• S7-1200 PNP: theory + schematic, board layout, PNP input/output connections.

• PNP software application: PLC simulation, software loading to PLC and operation with connections.

• S7-1200 NPN: theory/schematic, NPN input connection, why and where it is used.

• NPN software application: PLC simulation, installing and running software on a PLC.

• Motor control fundamentals: Direct starting of a 3-phase asynchronous motor (software + PLC connection + power connection)

• Multi-center management: controlling the motor from different points (PLC and motor connections)

• Advanced control: electrical interlocking and direction change (PLC + motor connections)

Don’t miss out while it’s on sale — Add to Cart and Register Now!

Who this course is for
Students who want to learn about automation systems and control panel applications.
For students who want to learn about Siemens PLC S7-1200 connections.
For students who want to learn Siemens PLC S7-1200 Software Applications.
